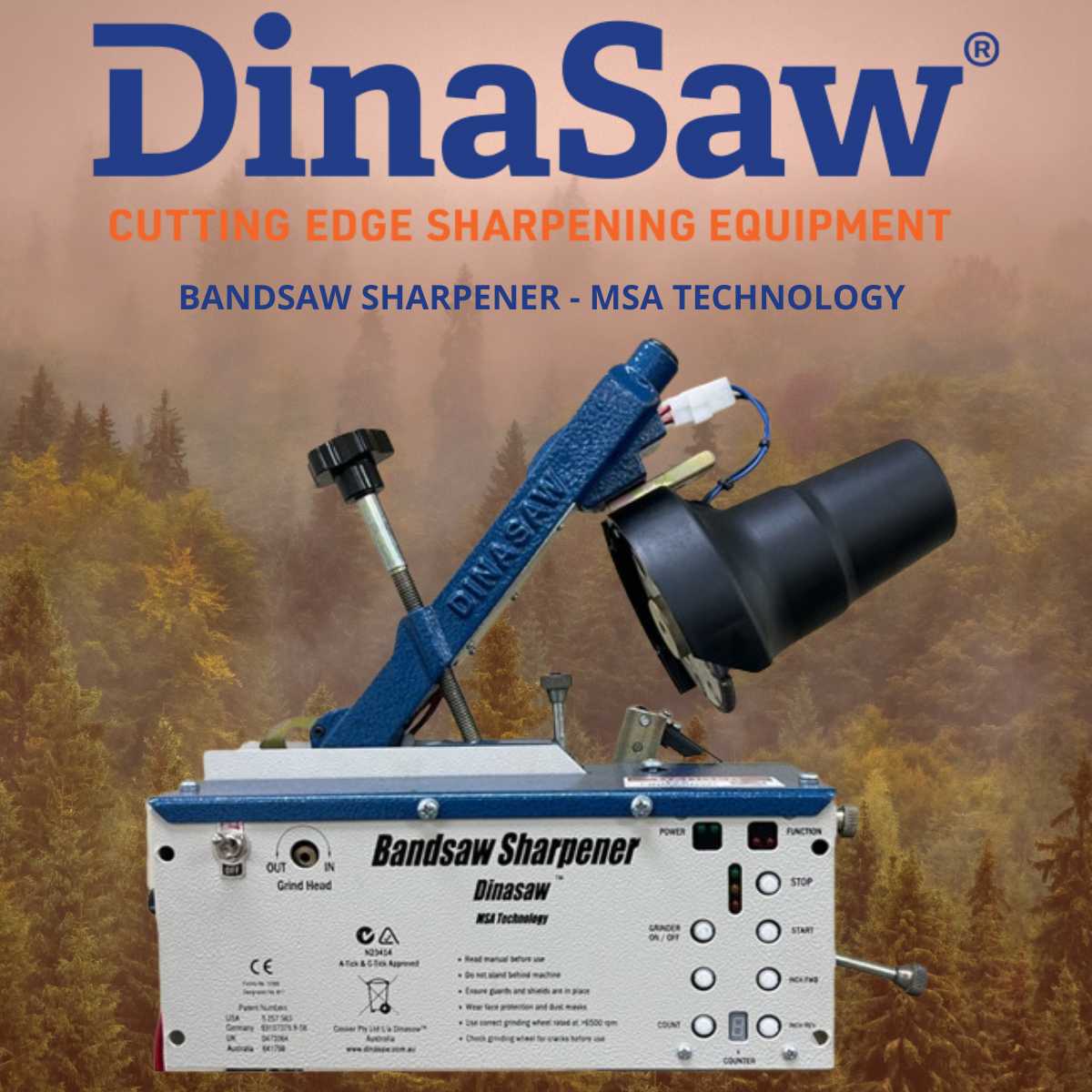

DinaSaw® Bandsaw Sharpener

Boost your Bandsaw's cutting efficiency with DinaSaw® Bandsaw Sharpener. By optimising tip angles, you'll experience enhanced tooth penetration and chip removal, leading to faster and more accurate cutting that lasts longer. The secret is in the teeth - their geometry plays a crucial role in the cutting process. By increasing the angle of the set teeth's cutting face, you'll see larger chips that are directed towards the centre, reducing frictional heat and sawdust build-up. Dinasaw patented sharpeners allow for a positive 10 degree angle across the set teeth's tips, further improving cutting and sawdust extraction. Don't let normal sharpeners limit you to only perpendicular sharpening. Upgrade to DinaSaw® and experience the full potential of your bandsaw.

4 MODELS AVAILABLE

FEATURES:

• Sealed ball bearings
• Case hardened cams and pivots
• High efficiency 12 volt motors
• Unique magnetic blade clamping
• Video assisted instruction manuals
• Free standing Tripod frame

This means unrivalled control you can now control the cutting angles to produce superior blades for more production with fewer miscuts.

Magnetic Blade Retention is used on all Dinasaw sharpeners providing uniform clamping pressure, allowing fast, easy changing and precise control over blade movement.

Microprocessor Control means you have complete control over the number of times you wish the blade to be sharpened.

BENIFITS

1. Saws stay sharper longer
2. Less sawdust remains on lumber
3. Teeth require less set

Dinasaw’s range of Bandsaw sharpeners are the most accurate, versatile and cost effective machines available.

The Manual machine is operated by turning a handle. One turn of the handle will sharpen one tooth.

The Fully Automatic machine is just that. Automatic. Controlled by state of the art electronics, this machine is able to monitor how many times the blade has gone around the machine and shut it off automatically at a predetermined point. Software driven soft-start means the machine can be fitted with ABN or CBN grinding wheels without excess current draw.

SCOPE OF SUPPLY:

Accessory Bag Contains

1 x Dressing Stone

1 x 10/13mm Open end Spanner

1 x 3mm hex key

1 x 4mm hex key

1 x 6mm hex key (MSA ONLY)

3 x Blade support Posts 150mm long

21 x M5x10 Pan Phil Screws

15 x M5 Lock Nuts

1 x M12 Nyloc Nut (Manual Only)

1 x 12x6x3 Magnet, 2 x 6x3 magnets together in Red Heat Shrink (Auto Only)

In The Box

1 Bandsaw Sharpener

3 x Sets of Telescopic Arms

3 x Sets of Telescopic Legs.

2 x Leg Support Braces ( 1 x Single & 1 x Double with fasteners installed)

1 x Blade Support Plate (Auto has a Proximity Switch) ( Manual has NO Proximity Switch)

1 x Paper Manual

1 x USB Manual

1 x Plastic Shield,

1 x Handle (Manual Only)

1 x Power Supply,

1 x Support Bracket, Power Supply
